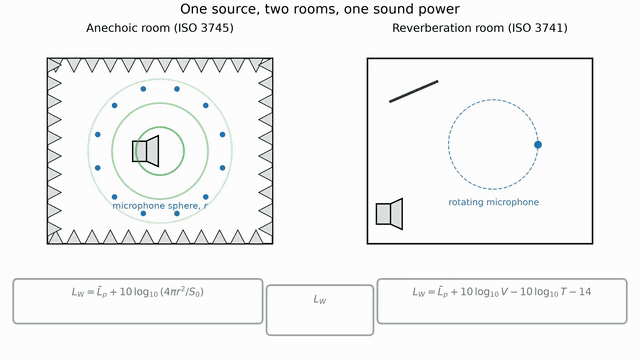

Source: https://docs.jmrp.io/phonometry/devices/emission/sound-power/ # Sound Power Sound *pressure* depends on where you stand and on the room you stand in; sound **power** does not. The sound power level $L_W$ is the total acoustic energy per second a source radiates, referenced to $P_0 = 1\ \text{pW}$, and it is the device-independent **emission** descriptor that goes on a datasheet, feeds a room prediction (EN 12354) or is checked against a noise-emission limit. phonometry implements ten standardised routes to it, split across seven guides: an enveloping *pressure* surface in the field (ISO 3744/3746) and the precision grade in an *anechoic room* (ISO 3745), covered in [Sound Power by Pressure Methods](https://docs.jmrp.io/phonometry/devices/emission/sound-power-pressure/); the diffuse field of a *reverberation room* (ISO 3741), covered in [Sound Power in the Reverberation Room](https://docs.jmrp.io/phonometry/devices/emission/sound-power-reverberation/); a *small test room* for a small movable source, hard-walled with a reference sound source (ISO 3743-1) or specially reverberant (ISO 3743-2), covered in [Sound Power in Small Test Rooms](https://docs.jmrp.io/phonometry/devices/emission/sound-power-test-rooms/); the same comparison against a reference sound source taken to the room the machine works in (ISO 3747), covered in [Sound Power in Situ by Comparison](https://docs.jmrp.io/phonometry/devices/emission/sound-power-in-situ/); *intensity* read at discrete points over a surface (ISO 9614-1), covered in [Sound Intensity (p-p)](https://docs.jmrp.io/phonometry/devices/emission/intensity/); the same intensity *scanned* over that surface (ISO 9614-2), with its precision counterpart (ISO 9614-3), covered in [Sound Power by Intensity Scanning](https://docs.jmrp.io/phonometry/devices/emission/sound-power-intensity/); and the *surface velocity* of the machine's own casing (ISO/TS 7849-1 and -2), the one route that needs no acoustic measurement at all, covered in [Sound power from surface vibration](https://docs.jmrp.io/phonometry/devices/emission/vibration-sound-power/). This page is the front door: how to choose among them, what the accuracy grades actually promise, and how a measured $L_W$ becomes the ISO 4871 noise-emission declaration a datasheet prints. [Watch the high-resolution video (WebM)](https://raw.githubusercontent.com/jmrplens/phonometry-assets/main/images/anim_power_two_rooms.webm) ## Choosing a method All deliver the same quantity for a source that runs steadily, a per-band $L_W$ and an A-weighted total $L_{W\mathrm{A}}$, but under different environments, accuracy grades and practical constraints. A source that emits in bursts has no steady power to report, and the in situ route and the hard-walled room of ISO 3743-1 determine its sound energy level $L_J$ instead (ISO 3747 clause 8.5, ISO 3743-1 clause 8.2). | Method | Standard | Measured quantity | Environment | Accuracy grade | Use when | | :--- | :--- | :--- | :--- | :--- | :--- | | Enveloping surface | **ISO 3744** (engineering) / **ISO 3746** (survey) | Sound pressure on a hemisphere or box | Essentially free field over one or more reflecting planes | Grade 2 ($\sigma_{R0} \approx 1.5\ \text{dB}$) / grade 3 ($\approx 3.0\ \text{dB}$) | In situ or a large room; no special test facility available | | Reverberation room | **ISO 3741** | Sound pressure in the diffuse field | Qualified hard-walled reverberation room | Grade 1 (precision) | Highest accuracy for steady, broadband sources in a lab | | Hard-walled test room | **ISO 3743-1** | Sound pressure of the source and of a calibrated reference sound source at the same positions | An ordinary hard-walled room of at least 40 m³, no surface absorbing more than 0.20 | Grade 2 ($\sigma_{R0} \approx 1.5\ \text{dB}$ A-weighted) | A small movable source, with no qualified laboratory room at hand | | Special reverberation room | **ISO 3743-2** | Sound pressure in a room whose reverberation time follows a prescribed curve | A special reverberation room of at least 70 m³, at most 300 m³ for the direct method with the 4 kHz and 8 kHz octaves | Grade 2 ($\sigma_{R0} \approx 2.0\ \text{dB}$ A-weighted) | Small sources tested one after another, read off the room alone or against a reference source | | In situ comparison | **ISO 3747** | Sound pressure of the source and of a calibrated reference sound source at the same positions | The reverberant part of the room the machine works in ($\Delta L_f \ge 7$ dB) | Grade 2 ($\sigma_{R0} \approx 1.5\ \text{dB}$) / grade 3 ($\approx 4.0\ \text{dB}$) | A machine that cannot leave its installation, in a room too reverberant for an enveloping surface | | Intensity at discrete points | **ISO 9614-1** | Normal sound intensity held at each of $N$ points, one per segment | Almost any, tolerant of steady extraneous noise | Grade 1 or 2 per band from the Annex B criteria; grade 3 on the A-weighted total | On-site where the probe stands still at each point rather than sweeping the surface | | Intensity scanning | **ISO 9614-2** | Normal sound intensity scanned over a surface | Almost any, tolerant of steady extraneous noise | Grade 2 / 3 (from per-band field indicators) | On-site with background noise, or one machine among many | | Anechoic room | **ISO 3745** | Sound pressure on a fixed microphone array | Qualified anechoic or hemi-anechoic room | Grade 1 (precision) | Reference-grade emission in a free-field laboratory | | Precision intensity scanning | **ISO 9614-3** | Scanned normal intensity, tighter criteria | Almost any, tolerant of steady extraneous noise | Grade 1 (precision) | Precision on-site, with the ISO 9614-3 field-indicator checks | | Surface vibration | **ISO/TS 7849-1** (survey) / **-2** (engineering) | Surface-averaged velocity level and a radiation factor | Any; no acoustic measurement | Upper limit ($\varepsilon = 1$) / engineering | The machine cannot be quietened, enclosed or approached with a microphone | The pressure methods correct the surface level for the room ($K_2$) and for background noise ($K_1$); the reverberation method needs a *qualified* room but reaches precision grade; intensity rejects steady background energy at the cost of a two-microphone probe and a per-band validity check; the surface-velocity route abandons the microphone altogether and pays for it with a radiation factor. Each method guide walks its routes in turn. The plate below draws seven of the ten: the in situ comparison and the two small test rooms share the sound pressure row's algebra with ISO 3741 and are drawn on their own pages.

Show the code for this figure

```python import matplotlib.pyplot as plt import numpy as np from phonometry import emission # One steady source (octave-band LW below) determined by three routes. freqs = np.array([125.0, 250.0, 500.0, 1000.0, 2000.0, 4000.0]) lw_true = np.array([85.0, 88.0, 90.0, 89.0, 86.0, 82.0]) # ISO 3744: SPL at 10 positions on a hemisphere, r = 2 m (10 lg(S/S0) = 14 dB). pres = emission.sound_power_pressure(np.tile(lw_true - 14.0, (10, 1)), "hemisphere", radius=2.0, frequencies=freqs) # ISO 9614-2: uniform normal intensity scanned over six 0.5 m2 segments. # In this free field Lp reads the intensity level, and the probe's # delta_pI0 = 18 dB makes the clause 10.6 b screening evaluable. i_n = np.tile(10.0 ** (lw_true / 10.0) * 1e-12 / 3.0, (6, 1)) lp = np.tile(lw_true - 10.0 * np.log10(3.0), (6, 1)) inten = emission.sound_power_intensity(i_n, np.full(6, 0.5), pressure_levels=lp, pressure_residual_index=18.0, frequencies=freqs, band_type="octave") # ISO 3741: comparison against a reference source of known LW = 84 dB per band. comp = emission.sound_power_comparison(lw_true - 20.0, np.full(6, 64.0), np.full(6, 84.0), frequencies=freqs) fig, ax = plt.subplots() for res, style, ms, label in ((pres, "-o", 11, "pressure (ISO 3744)"), (inten, "--s", 8, "intensity (ISO 9614-2)"), (comp, ":^", 5, "reference source (ISO 3741)")): ax.semilogx(freqs, res.sound_power_level, style, markersize=ms, label=f"{label}: LWA = {res.sound_power_level_a:.1f} dB") ax.set(xlabel="Frequency [Hz]", ylabel="Sound power level LW [dB]") ax.legend() plt.show() ```

### A decision path The table compresses into a short sequence of questions (ISO 3740 dedicates its Table 3 and Annex D to exactly this decision). Work through them in order; the first match names the standard. 1. **What is the number for?** A datasheet declaration or a limit check normally asks for engineering grade (grade 2, the preferred grade for noise declarations); a reference source, a product ranking or a dispute calls for precision (grade 1); a first walk-through of a noisy plant tolerates survey grade (grade 3). Grade 1 exists only in a qualified laboratory room (ISO 3741, ISO 3745) or via the precision intensity methods, both of which are here: ISO 9614-1 at discrete points in [Sound Intensity (p-p)](https://docs.jmrp.io/phonometry/devices/emission/intensity/), ISO 9614-3 by scanning in [Sound Power by Intensity Scanning](https://docs.jmrp.io/phonometry/devices/emission/sound-power-intensity/). 2. **Can the source travel to a laboratory?** ISO 3741 wants the source small next to the room (volume no more than about 2 % of the room volume) and its noise steady; ISO 3745 wants it inside a qualified anechoic or hemi-anechoic room with a characteristic dimension below half the measurement radius, and it is the route that also yields directivity. A machine bolted to its foundation rules both out and leaves the in-situ methods. A small movable source with no qualified room at hand still has a laboratory route at grade 2: the small test rooms of ISO 3743. 3. **How quiet and how dry is the site?** ISO 3744 needs the background at least 6 dB below the source (preferably more than 15 dB) and $K_2 \le 4\ \text{dB}$. If only a 3 dB margin or $K_2 \le 7\ \text{dB}$ can be met, the same microphones and formulae degrade gracefully to ISO 3746 at survey grade. 4. **Is the background the problem?** When neighbouring machines cannot be switched off, or the margin is outright negative, the pressure methods are out. Intensity (ISO 9614-1 at discrete points, ISO 9614-2 by scanning, ISO 9614-3 for grade 1 by scanning) tolerates steady extraneous noise even some 10 dB *above* the source, because only the net energy flux through the surface counts; the per-band field indicators then decide the grade actually achieved. 5. **Can you put a microphone there at all?** A machine that cannot be stopped, an environment that destroys a capsule, an enclosure with no room for a surface: when no acoustic measurement is possible, the surface-velocity route estimates the same quantity from accelerometers on the casing (ISO/TS 7849-1 and -2). It answers a subtly different question: it characterises what the *structure* radiates, and stays blind to sound escaping through openings, intakes and gaps, and it costs a radiation factor you must either assume (Part 1, an upper limit) or measure once (Part 2). ### What the accuracy grades mean The grade is a claim about **reproducibility**: $\sigma_{R0}$ is the standard deviation you would see if different laboratories measured the same source, each following the standard correctly. Typical A-weighted values are $\sigma_{R0} \approx 0.5\ \text{dB}$ for grade 1 (ISO 3741), 1.5 dB for grade 2 (ISO 3744, ISO 3743-1, ISO 3747, ISO 9614-2; 2.0 dB for ISO 3743-2) and 3 dB or more for grade 3 (larger still when $K_2$ is large or the spectrum is tonal). Per-band values are larger at the spectrum edges. The `uncertainty` field of the pressure-method results (enveloping surface and anechoic) is the expanded uncertainty $U = 2\sigma_\text{tot}$ (95 % coverage), where $\sigma_\text{tot} = \sqrt{\sigma_{R0}^2 + \sigma_\text{omc}^2}$ also folds in the operating/mounting instability $\sigma_\text{omc}$ that you estimate and pass in; the grade only bounds the method's share of the budget. In practice: a grade-2 $L_{W\mathrm{A}}$ of 92.4 dB carries $U \approx 3\ \text{dB}$, so two grade-2 results 2 dB apart are statistically indistinguishable, and checking that same source against a 93 dB limit is a coin flip. Choose the grade from the decision the number has to support, not from the facility that happens to be free. ## Declaring the noise emission (ISO 4871) A measured sound power level is not yet a *declaration*. ISO 4871:1996 is the standard for the noise-emission declaration a manufacturer prints in technical documents: which quantities are stated, in which form, and how a declared value is verified. The preferred quantity is the A-weighted sound power level $L_{W\mathrm{A}}$, optionally accompanied by the A-weighted emission sound pressure level $L_{p\mathrm{A}}$ at a work station. *What a declaration adds to a measured sound power: an uncertainty, one of two forms chosen by the noise test code, and a declared value that a new measurement on one machine either verifies or does not.* A declaration takes one of two alternative forms (clause 4): - the **dual-number** form (clause 3.16): the measured value $L_{W\mathrm{A}}$ and its uncertainty $K_{W\mathrm{A}}$ stated together but separately; and - the **single-number** form (clause 3.15): the derived declared value $L_{W\mathrm{Ad}} = L_{W\mathrm{A}} + K_{W\mathrm{A}}$, an upper limit that repeated measurements are unlikely to exceed at the stated confidence level. $K_{W\mathrm{A}}$ combines the measurement (reproducibility) and, for a batch, the production spread; for a single machine $K = 1.645\,\sigma_\mathrm{R}$ (Annex A.2.2). A `NoiseEmissionDeclaration` holds one or more per-operating-mode declarations and renders the ISO 4871 fiche through `.report()`. The quickest route is to `declare()` straight from a measured sound power: ```python import numpy as np from phonometry import emission from phonometry import ReportMetadata # ISO 3744: SPL at 10 positions on a hemisphere, r = 1 m (10 lg(S/S0) = 8 dB). levels = np.tile(lw_true - 8.0, (10, 1)) result = emission.sound_power_pressure(levels, "hemisphere", radius=1.0, frequencies=freqs) declaration = result.declare( uncertainty=2.0, # K_WA in dB (defaults to the expanded U) machine="Type 990, Model 11-TC", operating_conditions="50 Hz, 230 V, rated load", basic_standards="ISO 3744", verification_level=result.sound_power_level_a, # L_1 for clause 6.2 ) declaration.report( "iso4871.pdf", metadata=ReportMetadata(measurement_standard="ISO 3744"), ) # -> L_WAd = L_WA + K_WA, verified when L_1 <= L_WAd ``` Or build the declaration directly, reproducing the ISO 4871 Annex B example (two operating modes, $L_{W\mathrm{A}} = 88$ and 95 dB with $K_{W\mathrm{A}} = 2$ dB, giving declared $L_{W\mathrm{Ad}} = 90$ and 97 dB): ```python mode1 = emission.OperatingModeDeclaration( "Operating mode 1", sound_power_level=88.0, sound_power_uncertainty=2.0, emission_pressure_level=78.0, emission_pressure_uncertainty=2.0, verification_level=89.0, # passes: 89 <= 90 ) mode2 = emission.OperatingModeDeclaration( "Operating mode 2", sound_power_level=95.0, sound_power_uncertainty=2.0, emission_pressure_level=86.0, emission_pressure_uncertainty=2.0, verification_level=98.0, # fails: 98 > 97 ) emission.NoiseEmissionDeclaration( (mode1, mode2), machine="Type 990, Model 11-TC", basic_standards=("ISO 3744", "ISO 11202"), form="dual-number", ).report("iso4871.pdf") ``` The example fiche, regenerated with `make reports`, is kept rendered in the repository. Click the preview to open the PDF: [](https://raw.githubusercontent.com/jmrplens/phonometry/main/.github/reports/iso4871_declaration_example.pdf) *Noise emission declaration fiche (`NoiseEmissionDeclaration.report`), the ISO 4871 Annex B dual-number table with the declared $L_{W\mathrm{Ad}} = L_{W\mathrm{A}} + K_{W\mathrm{A}}$ and the clause 6.2 verification verdict.* ## See also - [Sound Power by Pressure Methods (ISO 3744 / ISO 3746 / ISO 3745)](https://docs.jmrp.io/phonometry/devices/emission/sound-power-pressure/): the enveloping surface with its $K_1$/$K_2$ corrections, and the precision anechoic array. - [Sound Power in the Reverberation Room (ISO 3741)](https://docs.jmrp.io/phonometry/devices/emission/sound-power-reverberation/): the precision diffuse-field method with the Waterhouse and meteorological corrections. - [Sound Power in Small Test Rooms (ISO 3743)](https://docs.jmrp.io/phonometry/devices/emission/sound-power-test-rooms/): a small movable source in a hard-walled room against a reference sound source, or in a special reverberation room read directly or against one. - [Sound Power in Situ by Comparison (ISO 3747)](https://docs.jmrp.io/phonometry/devices/emission/sound-power-in-situ/): the reference-source comparison where the machine works, with the sound energy level of an impulsive source. - [Sound Power by Intensity Scanning (ISO 9614-2 / ISO 9614-3)](https://docs.jmrp.io/phonometry/devices/emission/sound-power-intensity/): the routes that tolerate steady background noise, qualified by their field indicators. - [Sound power from surface vibration (ISO/TS 7849)](https://docs.jmrp.io/phonometry/devices/emission/vibration-sound-power/): the surface-velocity route, for a machine no microphone can approach. - [Sound Intensity (p-p)](https://docs.jmrp.io/phonometry/devices/emission/intensity/): the two-microphone probe behind every intensity route, and the ISO 9614-1 determination at discrete points. - [Room Acoustics](https://docs.jmrp.io/phonometry/buildings/rooms/room-acoustics/): the reverberation time and equivalent absorption area that feed the room corrections. - [Levels](https://docs.jmrp.io/phonometry/signals/levels/levels/): energy averaging and the A-weighting behind $L_{W\mathrm{A}}$. - [Theory](https://docs.jmrp.io/phonometry/reference/theory/environment-transport/): the Waterhouse, $K_1$/$K_2$ and $C_1$/$C_2$ derivations. - API reference: [`emission.sound_power`](https://docs.jmrp.io/phonometry/reference/api/power/sound-power/), [`emission.sound_power_reverberation`](https://docs.jmrp.io/phonometry/reference/api/power/sound-power-reverberation/) and [`emission.sound_power_intensity`](https://docs.jmrp.io/phonometry/reference/api/power/sound-power-intensity/). ## Quick answers ### What is the difference between sound power and sound pressure? Sound pressure depends on where you stand and on the room; sound power does not. The sound power level $L_W$ is the total acoustic energy per second a source radiates, referenced to $P_0 = 1\ \text{pW}$, and it is the device-independent emission descriptor that goes on a datasheet or is checked against a noise-emission limit; ISO 3744, ISO 3741, ISO 3743-1, ISO 3743-2, ISO 3747, ISO 9614-1, ISO 9614-2, ISO 3745, ISO 9614-3 and ISO/TS 7849 all determine it. ### What do the accuracy grades in sound power measurement mean? The grade is a claim about reproducibility: $\sigma_{R0}$ is the standard deviation you would see if different laboratories measured the same source, each following the standard correctly. Typical A-weighted values are $\sigma_{R0} \approx 0.5\ \text{dB}$ for grade 1 (ISO 3741), 1.5 dB for grade 2 (ISO 3744, ISO 3743-1, ISO 3747, ISO 9614-2; 2.0 dB for ISO 3743-2) and 3 dB or more for grade 3. A grade-2 $L_{W\mathrm{A}}$ carries $U \approx 3\ \text{dB}$, so two grade-2 results 2 dB apart are statistically indistinguishable. ### How do I measure sound power when background noise cannot be switched off? Use intensity: ISO 9614-1 at discrete points, ISO 9614-2 by scanning (grade 2 or 3) or ISO 9614-3 by precision scanning (grade 1). Because sound intensity is the net energy flux through the measurement surface, steady extraneous noise even some 10 dB above the source is tolerated, whereas the ISO 3744 pressure method needs the background at least 6 dB below the source. The per-band field indicators then decide the grade actually achieved. ## References - Beranek, L. L., & Mellow, T. J. (2012). *Acoustics: Sound fields and transducers*. Academic Press. ISBN 978-0-12-391421-7. [doi:10.1016/C2011-0-05897-0](https://doi.org/10.1016/C2011-0-05897-0). Radiation and sound fields: the free-field and diffuse-field relations between pressure and power that the whole method family rests on. - International Organization for Standardization. (2019). *Acoustics — Determination of sound power levels of noise sources — Guidelines for the use of basic standards* (ISO 3740:2019). [iso.org catalogue](https://www.iso.org/standard/45107.html). The selection guide behind "Choosing a method": grades, environments, source-size and background criteria for the whole family. - International Organization for Standardization. (1996). *Acoustics — Declaration and verification of noise emission values of machinery and equipment* (ISO 4871:1996). [iso.org catalogue](https://www.iso.org/standard/10868.html). The declaration section: the dual/single-number forms, $L_{W\mathrm{Ad}} = L_{W\mathrm{A}} + K_{W\mathrm{A}}$ (clause 3.15) and the clause 6.2 verification. ## Standards ISO 3740:2019, *Acoustics — Determination of sound power levels of noise sources — Guidelines for the use of basic standards*: the Table 3 / Annex D selection guidance condensed into the decision path of this page. ISO 4871:1996, *Acoustics — Declaration and verification of noise emission values of machinery and equipment*: the dual-number and single-number declaration forms, the declared value $L_{W\mathrm{Ad}} = L_{W\mathrm{A}} + K_{W\mathrm{A}}$ and the clause 6.2 verification. The basic determination standards (ISO 3744/3746, ISO 3741, ISO 3743-1/-2, ISO 3745, ISO 3747, ISO 9614-1/-2/-3, ISO/TS 7849-1/-2) are covered in their method guides. **Not covered.** The determinations themselves live in their method guides. The sound *energy* level $L_J$ of a single event is covered for the standards that define one, each on its own page: for ISO 3744 and ISO 3746 on the [pressure-methods](https://docs.jmrp.io/phonometry/devices/emission/sound-power-pressure/#4-sound-energy-level-of-a-burst-clause-83) page, for ISO 3741 on the [reverberation-room](https://docs.jmrp.io/phonometry/devices/emission/sound-power-reverberation/#3-sound-energy-level-of-a-single-event-clause-92) page, for ISO 3743-1 in [Sound Power in Small Test Rooms](https://docs.jmrp.io/phonometry/devices/emission/sound-power-test-rooms/#bursts-the-sound-energy-level-eq-15-to-20), and for ISO 3747 in [Sound Power in Situ by Comparison](https://docs.jmrp.io/phonometry/devices/emission/sound-power-in-situ/). ISO 3745 and ISO 3743-2 define none. The emission sound pressure level $L_{p\mathrm{A}}$ that stands beside $L_{W\mathrm{A}}$ in a declaration is consumed here, never determined: ISO 11201, ISO 11202 and ISO 11204 are outside the library. Of ISO 4871, only the clause 6.2 single-machine verification is evaluated; the batch criteria of clause 6.3 are not, and the batch statistics beyond the single-machine $K = 1{,}645\,\sigma_\mathrm{R}$ case of Annex A.2.2 are stated rather than derived.
