Kleidos in use

The recordings, in one place: each board on its own screen, the admin panel in a browser, and a section at the end saying what kind of capture every badge on the site means. Nothing here is a mock-up.

One recording per board

Six of the nine boards, each filmed on its own screen running the same demonstration vault. The badge on every figure says how its frames were taken.

Device captures M5StickC Plus S3 — the settings The settings tree opened from the vault with one long press: its nine groups, the six rows of the interaction group, and the speed of the PIN dial stepped up, stepped back and saved. Assembled from captures of the device's own screen, in the order and at the times a live run shows them.

Live from the device M5StickC Plus2 — one entry One demonstration entry on the second Stick: its card with the account name and a masked password, the action bar stepping from typing to revealing, and the password shown under a warning before the device masks it again on its own. A recording of the device's own screen: the board sent every frame over Wi-Fi as it drew it, while a script worked its controls, so the clip runs at the speed the device really runs at.

Device captures M5Stack CoreInk — electronic paper The same demonstration vault drawn in one bit on electronic paper: the list with its dithered service marks, the dial stepping down to an entry, the card's pager walking its sections, and the password unmasked under a held key. Assembled from captures of the device's own screen, in the order and at the times a live run shows them.

Device captures M5Stack CoreS3 SE — the panel, from the device The device's own screen while it serves the admin panel: the vault, then the card with the join code and the name to open in a browser, then the vault again with the radio down. The panel is served over a wired link here, so the network behind the code is a placeholder. Assembled from captures of the device's own screen, in the order and at the times a live run shows them.

Live from the device M5Stack Core2 v1.3 — typing with no keys The on-screen keyboard on a touch board that has no keys: the device-name field opened from the settings tree, five characters erased one key at a time, the same five typed back, and the name saved. A recording of the device's own screen: the board sent every frame over Wi-Fi as it drew it, while a script worked its controls, so the clip runs at the speed the device really runs at.

Live from the device LilyGO T-Deck Plus — searching The unlocked vault on the keyboard board: three typed letters narrow six demonstration entries to one, a key opens it, and another unmasks its password briefly before the device hides it again. A recording of the device's own screen: the board sent every frame over Wi-Fi as it drew it, while a script worked its controls, so the clip runs at the speed the device really runs at.

A walk through the admin panel

In development

What the panel looks like while it is used: the dashboard, a credential being edited, the security page, and the same panel on a phone. What it is and what it refuses are on the front page.

Panel in a browser One walk through the panel. A walk through the panel in a desktop browser: the dashboard, the six demonstration entries, one of them open with its password hidden, the authenticator, the security page and the backup page. A recording of the panel's own page in a browser, over a demo vault served from this computer rather than from a board.

The Kleidos admin panel in a desktop browser, listing the six demo entries of the vault with the account and the date each one last changed. — Panel in a browser The vault in the panel: the same six demo entries the device shows.

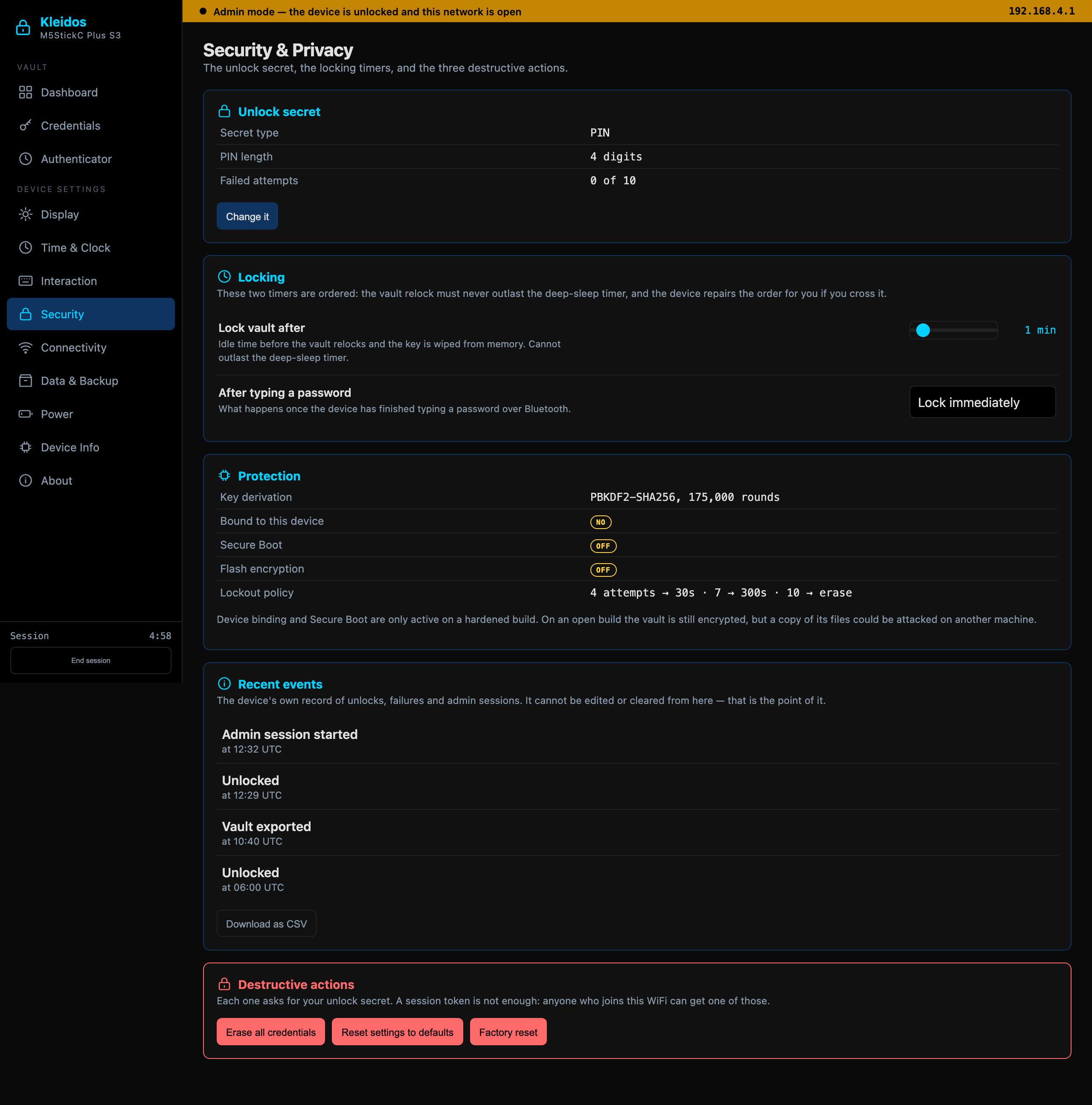

The admin panel's security page, showing the unlock secret, the locking timers and the three destructive actions. — Panel in a browser The security page: the unlock secret, the timers, and the three destructive actions.

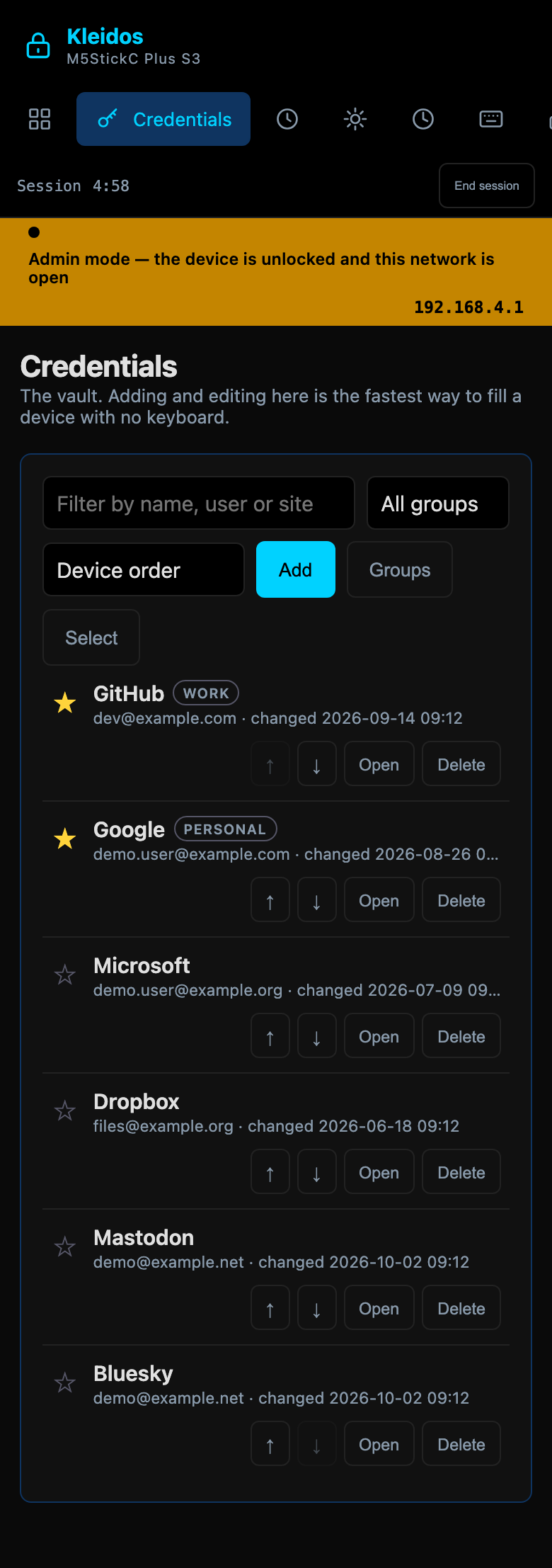

The same vault list in the admin panel on a phone, with the sidebar folded into a row of icons above the list. — Panel in a browser The same panel on a phone.

The clip and the three captures above are the panel's own page — the bytes the firmware serves — opened in a browser against a demo vault served from this computer instead of from a board. What they show is the page itself over demonstration data, not a session on a board.

How these recordings were made

Every screen on this site came out of the thing it shows. None of it is a mock-up, a reconstruction or an animation of an idea, and each figure carries a badge saying which of these it is.

Live from the device: The board sent every frame over Wi-Fi as it drew it, while a script worked its buttons, keys or touch screen. The clip runs at the speed the device runs at, key derivation and screen redraws included.
Device captures: The board was asked for its own screen at each step, and the frames were put together in the order and at the times a live run shows them. Real screens of a real run; what is authored is how long a settled screen is held.
Device screen: One frame, straight off the device's own screen, shown at its own pixels rather than smoothed.
Panel in a browser: The admin panel's own page — the bytes the firmware serves — opened in a browser against a demonstration vault served from this computer instead of from a board. It is the page, not a session on a board.
Drawing with device screens: Each board drawn to scale from its own measured case, carrying a capture of its own screen.

Every vault in these recordings is a demonstration vault: the entries, the accounts and the passwords were made up for the camera, on development builds, and no secret of anybody's appears in them.

Each published image and clip has a row in the repository recording its hash and the file it was made from, and the build refuses a figure whose row does not say how it was made.
